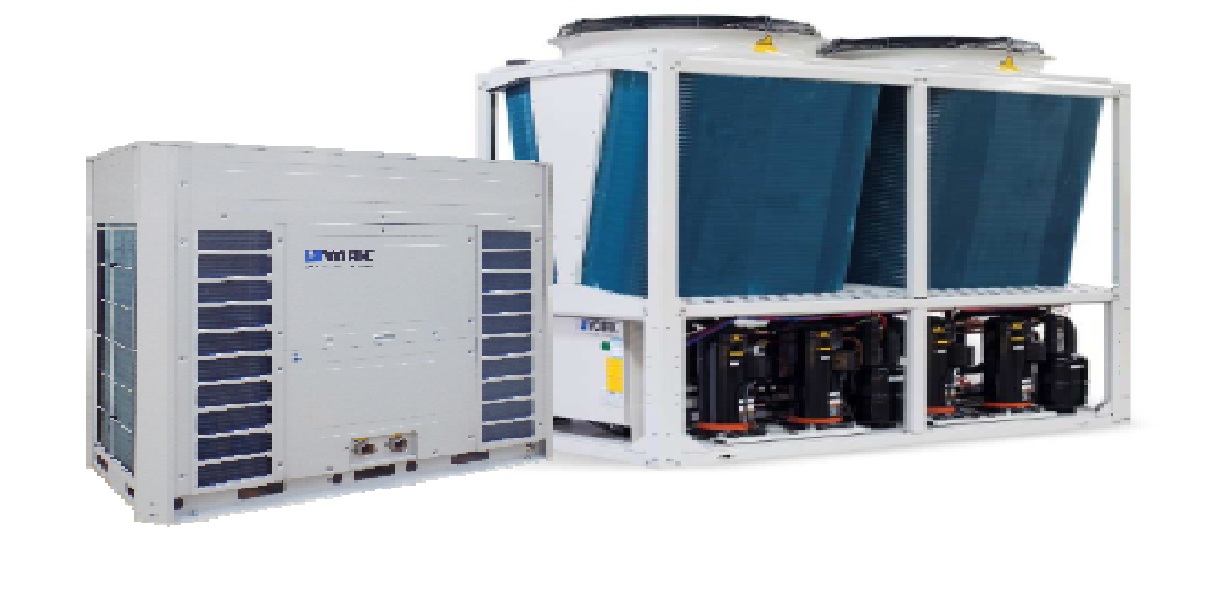

Chiller Mini York - YCAE Series

Model: YCAE Series

Xuất xứ: Trung Quốc

Bảo hành: 24 tháng

Sản phẩm được phân phối chính hãng

Price: Contact

* Maximize Efficiency through Modularity

With up to eight, independently operable  modules in one water system and a built-in main water pipe for easy field installation, the YORK®  YCAE provides a simplified, highly configurable installation

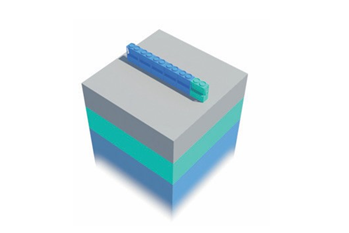

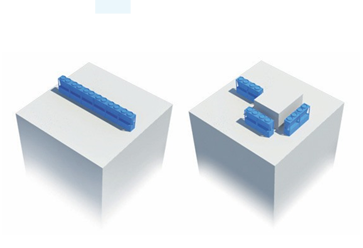

+) LOCATION-FRIENDLY CONFIGURATION OPTIONS:

 - Installation flexibility for modular chillers will allow you to use all available space,  with many possible configurations  (linear, parallel, star, etc.).

* Achieve  Greater Reliability

Independent operation, advanced system sequencing and intelligent defrost  features  contribute  to industry-leading reliability and consistent, long-term operation.

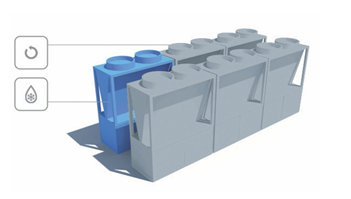

+) FULL REDUNDANCY WITH EASY PARTS MANAGEMENT:

A central controller allows you to decide the quantity of modules active at any time. If a module requires  maintenance, other  modules in the system  will continue  to operate,ensuring minimal capacity loss











+) EASIER PRODUCT  STOCKING:

-Modular chillers are your solution. Limited numbers  of module configurations  allow the distribution channel to keep modules in stock.

+) SIMPLIFIED SYSTEM  EXPANSION:

-Connecting the water  piping and cables, installing the sensors and bringing power to additional modules is quick and easy.

+) STAGED INVESTMENT  FOR GROWTH:

- Buildings being constructed or occupied  in phases  do not need  full cooling/heating capacity at the start.

 Modular chillers allow you to stage  the investment by combining modules to obtain the required  capacity.

+) INTUITIVE CENTRAL CONTROLLER:

- Modular units, which can manage  up to eight modules per system,  are controlled  with a single, central controller.  The central controller sequences the units to even out run times and prolong the life of the chiller.

+) SMALLER COMPONENTS  FOR REDUCED SOUND:

- Modular design uses low-capacity modules installed together. Components are carefully selected based  on performance, reliability and low noise attributes. When comparing  modular systems  with standard  chillers, modular chillers provide a reduced  sound level.

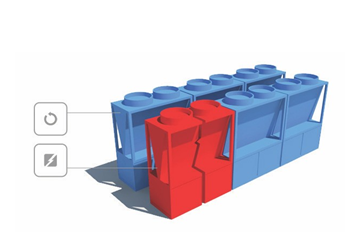

+) INTELLIGENT DEFROST  FOR HEAT PUMPS:

- For proper  operation  of our air-to-water heat pumps, regular defrosting  must occur. The central controller optimizes the sequencing of the defrost  cycle, allowing only one module to defrost  at a time. This allows the remaining modules to continue  to provide heating.

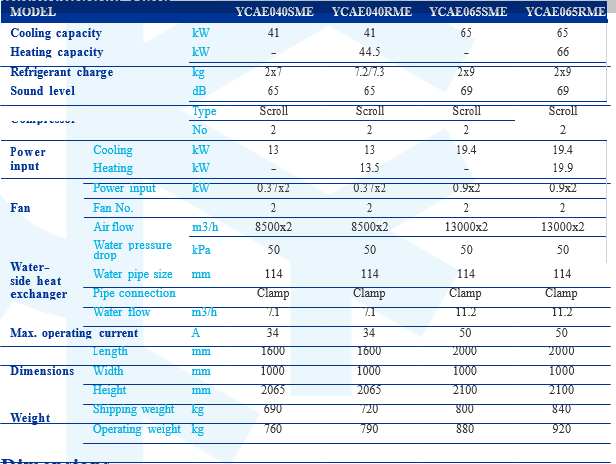

* Performance Data
